Electric Terminal Crimping Machine 3T Output, 0.5-120mm² EM-50B2BC / EM-50B1BC

Electric Terminal Crimping Machine 3T Output, 0.5-120mm² EM-50B2BC / EM-50B1BC Thumb

Electric Terminal Crimping Machine 3T Output, 0.5-120mm² EM-50B2BC / EM-50B1BC

Name: Electric Terminal Crimping Machine 3T Output, 0.5-120mm² ...
Brand: JINGWEI
SKU: EM-50B2BC / EM-50B1BC
Availability: InStock
Rating: 5 (1 reviews)

📅 2026-07-22 👁️ 1,849

Model No: EM-50B2BC / EM-50B1BC
Specifications
Electric Terminal Crimping Machine 3T Output, 0.5-120mm² EM-50B2BC / EM-50B1BC
Machine Type Electric terminal crimping machine with stripping & cutting function
Output Force 3 T
Max. Crimping Capacity Non-insulated terminals up to 50 mm²; tubular terminals up to 120 mm²
Crimping Time 1.5 s (60Hz) / 1.8 s (50Hz)
Voltage AC 200–230 V
Power Consumption 180 W
Stripping Range ≤ 6 mm²
Cutting Range ≤ 10 mm²
Die Sets Included 7 interchangeable precision die sets
Overall Dimension 155 × 110 × 60 mm
Weight 21 kg
Additional Features Counter, overload protection, condition display, CW/CCW switch, adjusting knob, tool box, carry handle
Inquiry now

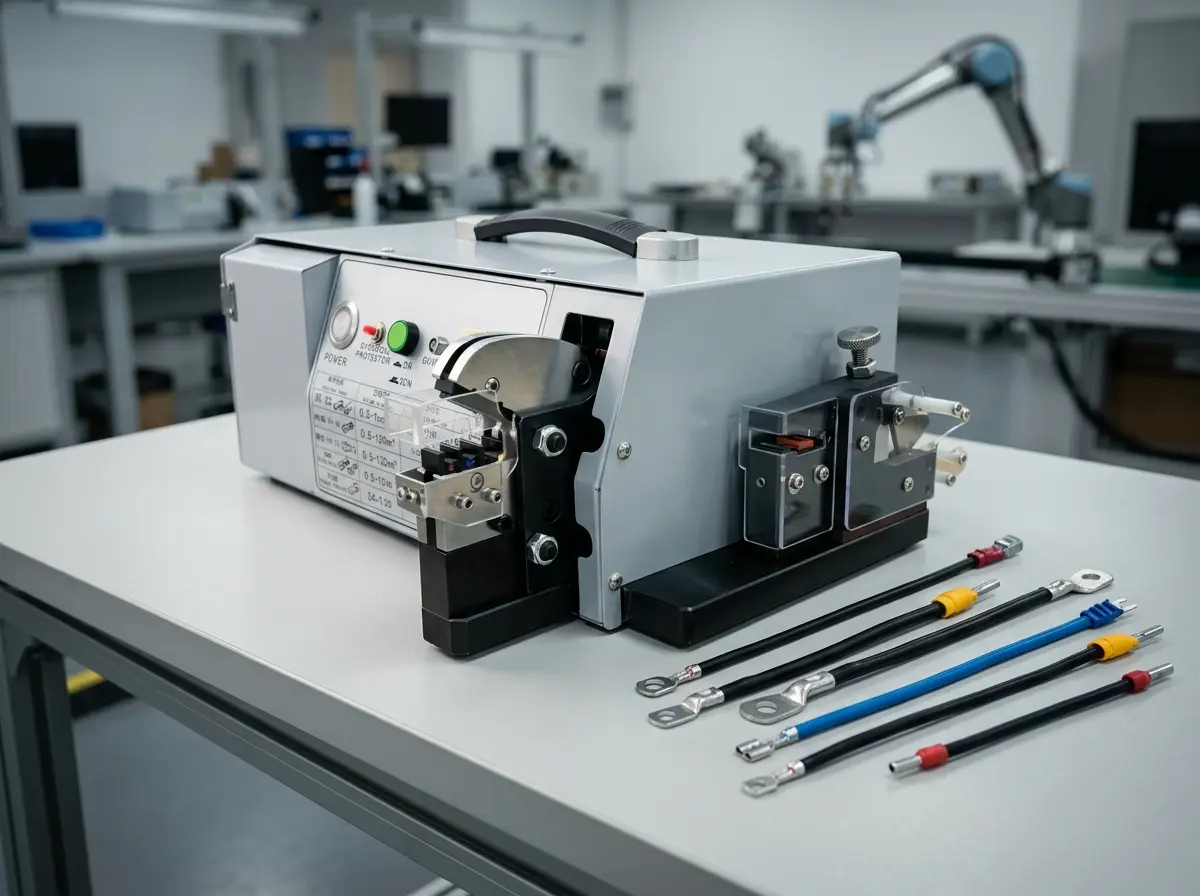

Heavy-Duty Electric Terminal Crimping Machine up to 120mm² with Stripping & Cutting Function EM-50B2BC / EM-50B1BC
The EM-50B2BC / EM-50B1BC series is a heavy-duty electric terminal crimping machine built for solderless electrical connections. With a powerful 3-ton crimping force, it handles cold-press terminals from 0.5mm² up to 120mm² — far beyond standard bench crimpers — while integrating wire stripping and cutting functions into one compact unit. Labor-saving, fast, and consistent, it is the ideal replacement for manual crimping tools in demanding production environments.
Supplied with seven precision, replaceable die sets, the machine adapts quickly to a wide variety of terminal types. Driven by a fixed-speed motor, the series delivers high efficiency and high quality in both crimping force and crimping speed, making it the best choice for medium to large production quantities — especially when many different kinds of terminals need to be processed on a single machine.
Two Models to Match Your Power Supply and Crimping Needs
EM-50B2BC (AC 200–230V): The high-capacity version, crimping non-insulated terminals up to 50mm² and tubular terminals up to 120mm² — ideal for heavy-gauge cable lugs and large power cables.
EM-50B1BC (AC 100–125V): The 110V version for regions with lower voltage supply, crimping insulated terminals up to 25mm² — perfect for standard cabinet wiring and control panel work.
Both models share the same 3T output, stripping range (≤6mm²), cutting range (≤10mm²), compact dimensions, and 21kg weight, so your choice depends only on your local voltage and terminal size requirements.
Key Features
High-Capacity Crimping up to 120mm²: The EM-50B2BC crimps tubular terminals up to 120mm² and non-insulated terminals up to 50mm², covering heavy-duty power cable applications that ordinary crimpers cannot handle.

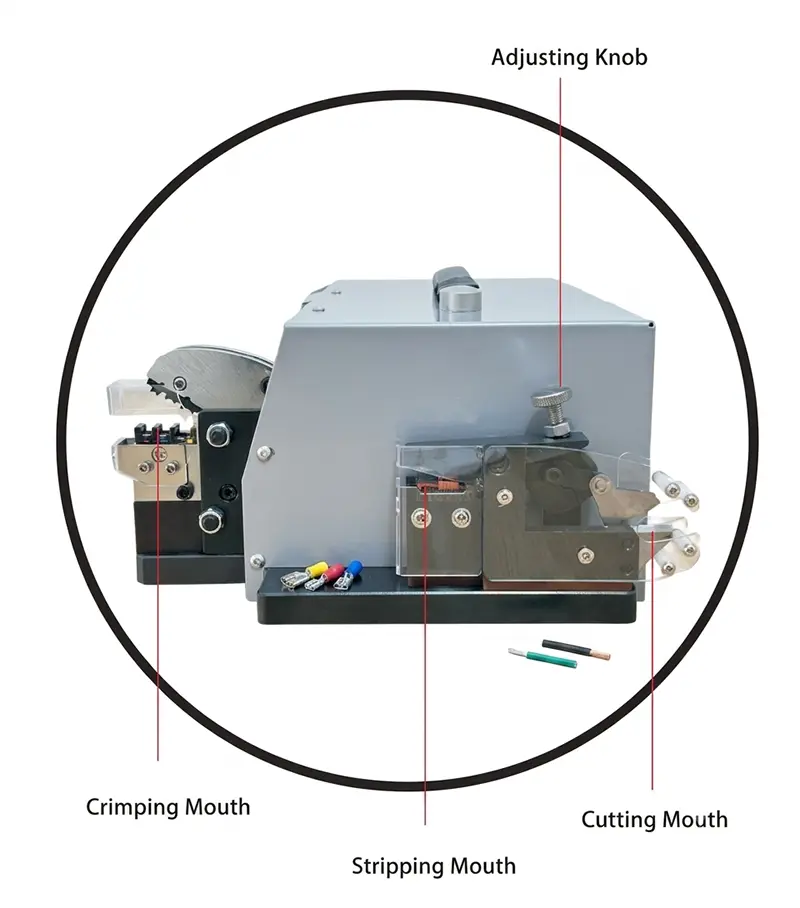

3-in-1 Functionality: Terminal crimping, wire stripping, and wire cutting in one machine, with dedicated crimping, stripping, and cutting mouths plus an adjusting knob for quick setup.
Powerful 3T Output: A 3-ton crimping force delivers tight, reliable, gas-proof crimps on large cross-section terminals every cycle.
7 Interchangeable Die Sets: Seven precision die sets are included as standard and can be swapped in seconds to match different terminal types and sizes.
Fast Crimping Cycle: Just 1.5 seconds per crimp at 60Hz (1.8 seconds at 50Hz), keeping medium and large batch production moving at high speed.
Motor-Driven Consistency: The fixed-speed motor drive guarantees stable crimping force and speed, eliminating the inconsistency and fatigue of manual crimping.

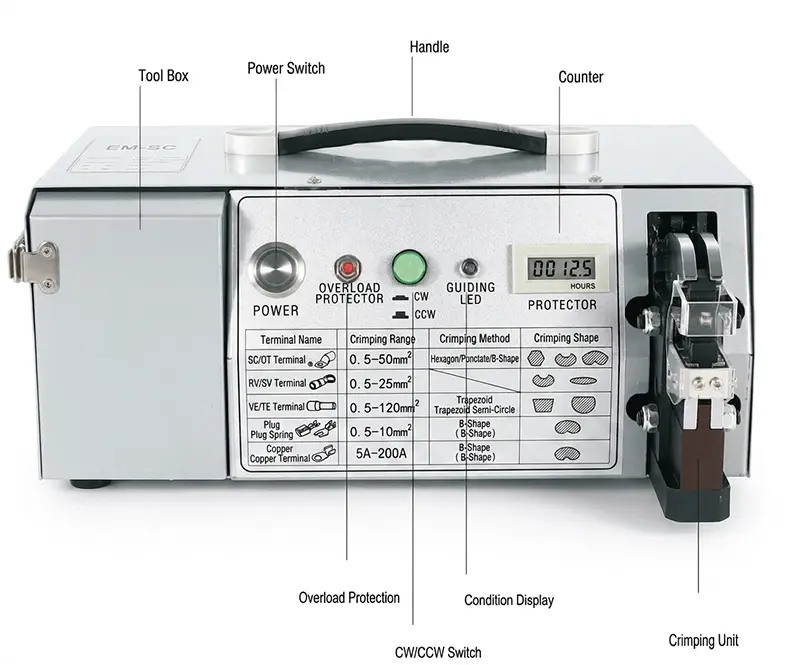

Operator-Friendly Design: Foot switch operation, built-in counter, overload protection, condition display, CW/CCW switch, tool box, and carry handle — everything needed for safe, productive daily operation.
Typical Applications
Power distribution and switchgear manufacturing — heavy-gauge cable lug crimping up to 120mm²
Electrical cabinet and control panel wiring — reliable crimping of insulated and non-insulated terminals
Wire harness and cable assembly workshops — medium to large batch crimping with frequent die changes
Renewable energy and industrial equipment wiring — large cross-section power cable termination
3. Specifications

Parameter	EM-50B1BC	EM-50B2BC
Machine Type	Electric terminal crimping machine with stripping & cutting function	Electric terminal crimping machine with stripping & cutting function
Output Force	3 T	3 T
Max. Crimping Capacity	Insulated terminals up to 25 mm²	Non-insulated terminals up to 50 mm²; tubular terminals up to 120 mm²
Crimping Time	1.5 s (60Hz) / 1.8 s (50Hz)	1.5 s (60Hz) / 1.8 s (50Hz)
Voltage	AC 100–125 V	AC 200–230 V
Power Consumption	180 W	180 W
Stripping Range	≤ 6 mm²	≤ 6 mm²
Cutting Range	≤ 10 mm²	≤ 10 mm²
Die Sets Included	7 interchangeable precision die sets	7 interchangeable precision die sets
Overall Dimension	155 × 110 × 60 mm	155 × 110 × 60 mm
Weight	21 kg	21 kg
Additional Features	Counter, overload protection, condition display, CW/CCW switch, adjusting knob, tool box, carry handle	Counter, overload protection, condition display, CW/CCW switch, adjusting knob, tool box, carry handle

What is the maximum crimping capacity of the EM-50B2BC electric terminal crimping machine?

The EM-50B2BC model can crimp non-insulated terminals up to 50 mm² and tubular terminals up to 120 mm², making it ideal for heavy-duty applications like large power cable lugs.

Does the EM-50B1BC/EM-50B2BC terminal crimping machine include stripping and cutting functions?

Yes, this heavy-duty electric terminal crimping machine integrates three functions in one unit: terminal crimping, wire stripping (up to 6 mm²), and wire cutting (up to 10 mm²), with dedicated mouths and an adjusting knob for quick setup.

What is the difference between the EM-50B1BC and EM-50B2BC models?

The EM-50B2BC operates on AC 200–230V and crimps non-insulated terminals up to 50 mm² and tubular terminals up to 120 mm², while the EM-50B1BC runs on AC 100–125V and crimps insulated terminals up to 25 mm². Both share the same 3-ton force, stripping/cutting ranges, and compact design.

How fast is the crimping cycle on this terminal crimping machine?

The crimping cycle is very fast: just 1.5 seconds per crimp at 60Hz and 1.8 seconds at 50Hz, ensuring high productivity for medium to large batch production.

What die sets come with the EM-50B2BC/EM-50B1BC terminal crimping machine?

The machine includes 7 interchangeable precision die sets as standard, allowing quick adaptation to various terminal types and sizes for versatile crimping needs.
