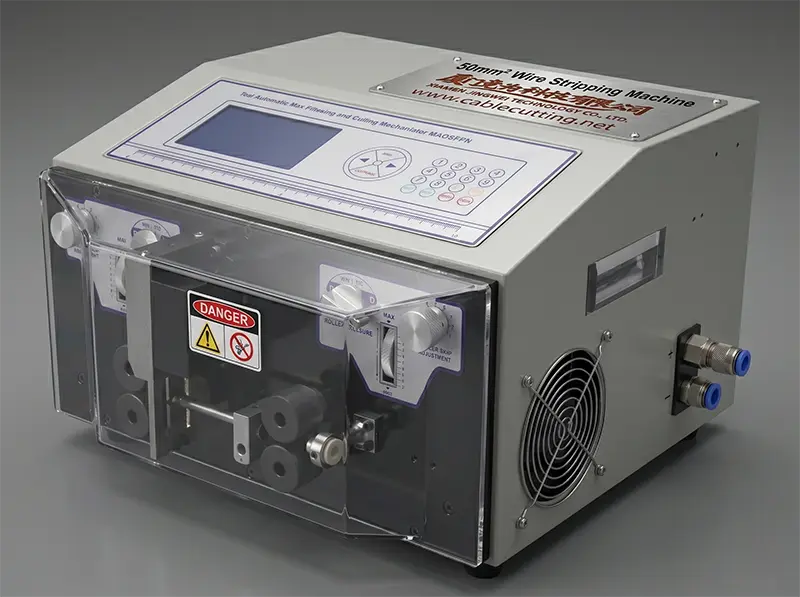

Automatic 50mm² Wire Stripping Machine for Industrial Cables WPM-MAX2-50

Automatic 50mm² Wire Stripping Machine for Industrial Cables WPM-MAX2-50

Name: Automatic 50mm² Wire Stripping Machine for Industrial Cab...
Brand: JINGWEI
SKU: WPM-MAX2-50
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-MAX2-50
Specifications
Heavy-duty wire stripping machine WPM-MAX2-50
Wire Cross-Section Range: 0.1-50.0mm²
Conduit Diameter: 18mm
Cutting Length: 1mm-100000mm
Cutting Tolerance: ±(0.002×L)
Stripping Length: Head 0-150mm, Tail 0-150mm
Middle Stripping Sections: Max 16
Speed: 5000-6000pcs/h
Display: English/Chinese LCD
Drive Mode: 8 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Electrical wires, PVC/Silica gel line/Glass fiber cables
Power Supply: 220V/50Hz, 110V/60Hz
Power Rating: 1000W
Dimensions: 400mm×515mm×345mm
Weight: 72kg
Inquiry now

Heavy-duty wire stripping machine, Supper Thick cable cutting and stripping machine, BV/BVR cable stripping machine
Features:
Automatic Full Computer Wire Stripping Machine
Adopt advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.
Apply for:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.
Specification:
Available Wire Cross-Section Range: 0.1～50.0mm2
Conduit Diameter: ￠18mm
Cutting Length: 1mm～100000mm
Cutting tolerance: ± (0.002 × L) (Cutting length)
Stripping Length: Head 0~150mm, Tail 0~150mm
Middle Stripping Section: Max 16
Speed: 5000-6000pcs/h
Display Way: English/Chinese LCD
Drive Mode: 8 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Electrical wires, PVC/Silica gel line/Glass fiber cables
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 1000W
Measurement: 400mm×515mm×345mm
Weight: 72kg

What is the maximum cable cross-section the WPM-MAX2-50 can handle?

The WPM-MAX2-50 Automatic Wire Stripping Machine is designed for heavy-duty industrial cables with a maximum cross-section of 50mm². This makes it ideal for processing larger gauge wires commonly used in industrial power distribution, machinery, and construction applications.

What materials and wire types is this machine suitable for?

This machine is highly versatile and engineered to strip a wide range of insulation materials, including PVC, Teflon (PTFE), and silica gel. It is perfectly suited for processing common industrial wire types such as BV and BVR cables, ensuring clean, precise stripping without damaging the conductor.

How fast is the WPM-MAX2-50, and what is its production capacity?

The WPM-MAX2-50 is a high-speed automatic wire stripper with an impressive output of 5000 to 6000 pieces per hour. This exceptional speed, powered by its 8-drive motor system, significantly boosts productivity for high-volume industrial wire processing operations.

What makes the cutting blades on this machine durable and precise?

The machine is equipped with hard tungsten steel blades, renowned for their exceptional wear resistance and longevity. These blades maintain a sharp cutting edge through prolonged use, ensuring consistent, clean cuts and precise strip lengths while reducing downtime for blade replacement or sharpening.

What are the key benefits of using an automatic wire stripper like the WPM-MAX2-50?

The primary benefits include dramatically increased production efficiency, consistent and high-quality stripping results, and reduced labor costs and operator fatigue. Its robust 8-drive construction and automatic feeding make it a reliable, heavy-duty solution for industrial environments, ensuring precise processing of cables up to 50mm² with minimal setup time.
