Viscosity Hot Melt Dispensing Robot, Glue Dispenser Robot, Automatic Glue Dispenser Robot
Model WPM-551
Working range(mm) 500/500/100
Programmatic ally Import teaching programming or graphics
Can move the graph track Point, line, arc, circle, cure, multiple lines, spiral, ellipse
Control System Single-chip + hand box control
Dispensing head PUR dispensing head/PUH dispensing head
Dispensing cylinder 30ml or 50ml
Minimum discharge 0.01ml
The glue frequency 5Time/SEC
Load 10KG
Axial dynamic speed X/Y/Z(mm/sec) 0-600mm/sec
Repeatability(mm) ±0.02mm
Program record mode At least 100,5000 points each
Display mode LCD Teaching box
Motor system stepper motor
Guide Taiwan upper silver linear guide
Wire rod Taiwan TBI silver bar
Belt&am
Revolutionize Precision Dispensing with the Desktop Glue Robot: Automatic 30ML PUR Hot Melt Application
Introducing the Desktop Glue Robot, the Automatic 30ML PUR Hot Melt Glue Dispense Machine XYZ Dispenser Robot - a compact yet powerful solution designed to transform your adhesive application processes. This state-of-the-art desktop glue robot brings automation and unparalleled precision directly to your workbench, enhancing efficiency and ensuring consistent, high-quality results for a wide range of applications.
This advanced Desktop Glue Robot is engineered to automate and optimize dispensing tasks, freeing up valuable operator time and minimizing material waste. It is programmatically advanced, offering both import teaching programming or graphics capabilities. This intuitive programming interface allows for rapid setup and precise control over dispensing parameters, accommodating even the most intricate application requirements.
The Desktop Glue Robot excels in motion versatility, capable of moving in a comprehensive graph track including point, line, arc, circle, cure, multiple lines, spiral, ellipse patterns. This extensive range of motion profiles ensures adaptability to diverse workpiece geometries and complex dispensing paths, maximizing application flexibility.
At its core, the Control System utilizes a robust Single-chip + hand box control architecture, providing reliable and responsive performance. The system features a specialized Dispensing head, available in PUR dispensing head/PUH dispensing head configurations, optimized for hot melt glue application. It accommodates a Dispensing cylinder size of 30ml or 50ml, catering to varying volume needs.
Precision is paramount, and this Desktop Glue Robot delivers exceptional accuracy with a Minimum discharge volume of just 0.01ml. Operating with a rapid glue frequency of 5 Time/SEC, it balances speed and precision for efficient production. It boasts a substantial Load capacity of 10KG, enabling handling of various dispensing tools and workpieces.
The dynamic Axial dynamic speed across X/Y/Z axes reaches up to 0-600mm/sec, ensuring rapid and efficient movement. Furthermore, the system achieves impressive Repeatability within ±0.02mm, guaranteeing consistent dispensing accuracy across every application. The Program record mode offers ample storage, supporting At least 100 programs, each with up to 5000 points, accommodating complex and varied dispensing routines. A user-friendly Display mode is provided via an LCD Teaching box, simplifying programming and operation.

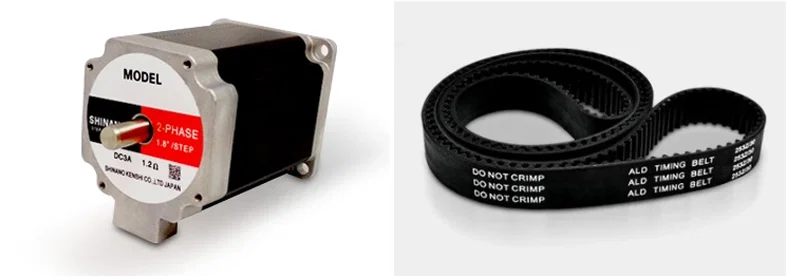

The Motor system employs a precise stepper motor drive for accurate and controlled motion. Premium components ensure long-term reliability, including Taiwan upper silver linear guide rails, Taiwan TBI silver bar wire rods, and an Italy synchronous belt drive system. The integrated Motion filling function supports 3 Axis movement, further enhancing dispensing flexibility and precision.
Operating on standard Input power of AC110V~ 220V, the Desktop Glue Robot is easily integrated into diverse electrical environments. An External control interface via RS232 enables seamless communication with external systems. The Motor control shaft number is 3 Axis, reflecting its full XYZ motion control. Despite its powerful capabilities, the Outline size remains compact at 720785596.5mm, and with a Weight of 65KG, it maintains a true desktop footprint, maximizing space utilization.
Transform your dispensing workflow with the Desktop Glue Robot. Experience automated precision, enhanced efficiency, and consistent quality for all your hot melt glue application needs with this powerful and compact desktop solution.
