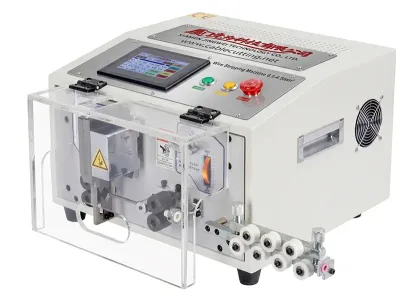

Touch Screen Automatic Wire Stripping Machine 0.1-4.5mm² WPM-SDS

Name: Touch Screen Automatic Wire Stripping Machine 0.1-4.5mm² ...
Brand: JINGWEI
SKU: WPM-SDS
Availability: InStock
Rating: 5 (1 reviews)

WPM-SDS wire Stripping Cutting Machine for Computer automatic wire strip stripping, Wire Stripping Machine For Sale, Automatic Wire Cutting And Stripping Machine, Copper Wire Peeling Machine machine 0.1-4.5 mm² AWG10-AWG28 220V 110V Optional Touch Screen Control
(RE: 1. WPM-SDS is with touch screen control.
2. Crystal Protect case is not included if needed plus an extra $90)

Product Description
The product function characteristics:
Collection and integration, the microcomputer automatic computer for the stripline machine is a kind introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
Our product is to use LCD screen man-machine dialogue mode, with a nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. The wire length can be set arbitrarily, thrum, and the line end parameters can also be according to the customer's request to change, different degrees of finish stripping wires, also has the high tension line of line, the casing of the shear, etc. Function

Applications:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, Teflon, glass wire, etc.

Technical parameters:

Model WPM-SDS
Wire cross-section 0. 1~4.5mm²
Wire length range 1mm~ 999mm
Stripping lengths Full strip/half strip/middle strip
Strip length Front end 0 - 35; rear end 0- 15mm.
Intermediate peeling times 11 times
Max conduit inside diameter 6mm
Transport speed 3000-8000pcs/hour
Length accuracy less than (0.002xL) mm
Noise level <70dB(A)
Gross weight 31kgs
Packing dimension 537*507*400mm
Operation interface English/Chinese
Wire material For PVC, Teflon, Braided, Fiberglass wire
Electrical connection 110V/220V 50HZ/60HZ 200W
WPM-SDS wire Stripping Cutting Machine for Computer automatic wire strip stripping, Wire Stripping Machine For Sale, Automatic Wire Cutting And Stripping Machine, Copper Wire

sample of WPM-SDS wire Stripping Cutting Machine for Computer automatic wire strip stripping, Wire Stripping Machine For Sale, Automatic Wire Cutting And Stripping Machine, Copper Wire

What wire sizes can the Touch Screen Automatic Wire Stripping Machine WPM-SDS handle?

The WPM-SDS is designed to process wires from 0.1mm² to 4.5mm² in cross-sectional area, making it versatile for a wide range of applications from delicate electronics to more robust industrial cables.

How fast and precise is this automatic wire stripper?

This industrial wire processor operates at high speeds of 3000 to 8000 pieces per hour, with a stripping precision of ±0.002mm. This ensures consistent, high-quality results essential for efficient cable harness manufacturing.

Is the machine easy to operate for different operators?

Yes, the intuitive touch screen interface simplifies operation, allowing for quick setup and adjustment of parameters like strip length and depth. This reduces training time and minimizes errors, enhancing productivity on the shop floor.

What power supply options are available for the WPM-SDS wire stripper?

To accommodate global manufacturing facilities, the machine is available in both 220V and 110V power supply options. Please specify your regional voltage requirement when ordering to ensure proper compatibility.

What are the primary industrial applications for this wire cutting and stripping machine?

The WPM-SDS is ideal for cable harness and wiring loom production, automotive electronics, appliance manufacturing, and any application requiring high-volume, precise wire termination. Its reliability and precision make it a key piece of cable harness equipment for improving assembly line efficiency.
