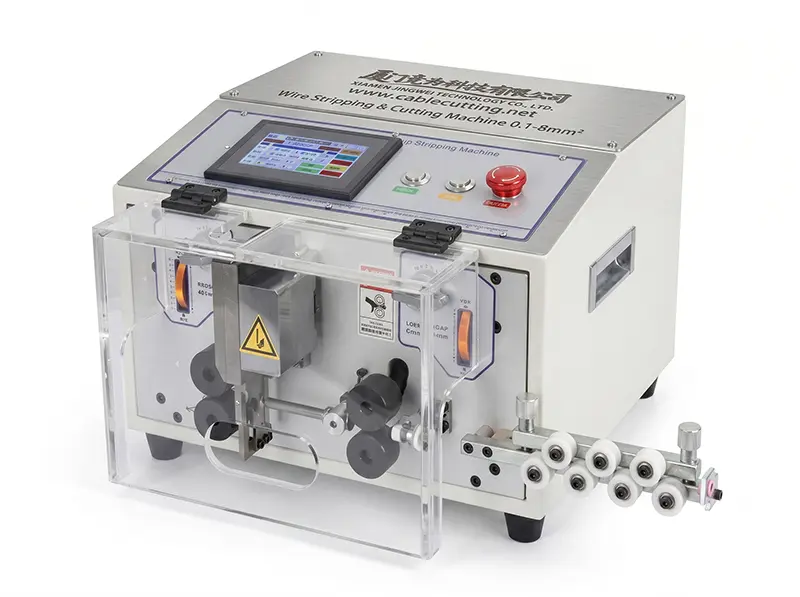

Touch Screen Automatic Wire Stripping Machine 0.1-8mm² WPM-ES

Name: Touch Screen Automatic Wire Stripping Machine 0.1-8mm² WP...
Brand: JINGWEI
SKU: WPM-ES
Availability: InStock
Rating: 5 (1 reviews)

wire stripping machine 0.1 to 8mm2 AWG28-AWG8 220V 110V Optional Touch Screen Control
The product function characteristics:
Collection and integration, the microcomputer automatic computer for the stripline machine is a kind introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment. Widely used in the electronics industry, the city has electrical appliances, motors, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, Teflon, glass wire, etc.
Our product is to use LCD screen man-machine dialogue mode, with a nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. The wire length can be set arbitrarily, thrum and the line end parameters can also be according to the customer's request to change, different degrees of finish stripping wires also has the high tension line of line, the casing of the shear, etc.
Technical parameters:
Voltage AC 110V/220V/50/60 Hz
Dimensions 537x507x400mm
Display mode LCD liquid crystal display in Chinese and English interface
Weight 34(KG)
Power 300(W)
Cutting length 1-9999mm
Cutting tolerance (0.2±0.002×L) mm
Cutting tolerance correction
Stripping length head 0-50mm, end 0-50mm
Intermediate stripping eleven place strip
Wire cross-section 0.1~8mm2(AWG28 – AWG8)
Maximum diameter of tube 10
Suitable wire stripping PVC/PTFE/silicone cable/fiberglass wire
Blade material rigid steel
Wire-speed (pcs/h) 3000-5000
Driving a four-wheel drive
Touch Screen Control Wire Stripping cutting Machine 0.1- 8mm2 WPM-ES Automatic Wire Stripping Machine, Cable Stripping Cutting Machine, wire stripping Machine

Touch Screen Control Wire Stripping cutting Machine 0.1- 8mm2 WPM-ES Automatic Wire Stripping Machine, Cable Stripping Cutting Machine, wire stripping Machine

result display of Touch Screen Control Wire Stripping cutting Machine 0.1- 8mm2 WPM-ES Automatic Wire Stripping Machine, Cable Stripping Cutting Machine, wire stripping Machine

What wire sizes and types can the WPM-ES Touch Screen Automatic Wire Stripping Machine handle?

The WPM-ES is designed for industrial wire processing of cables from 0.1 to 8mm² (approximately AWG28 to AWG8). It effectively strips a variety of insulation materials, including PVC, Teflon (PTFE), and fiberglass wires, making it versatile for different applications.

How user-friendly is the operation with the touch screen interface?

The integrated touch screen provides an intuitive and professional control panel. Operators can easily set parameters like strip length, cutting depth, and production speed with precision. This simplifies setup, reduces training time, and minimizes errors for consistent, high-quality results.

What is the production speed of this automatic wire stripper?

This high-speed wire stripping machine offers an impressive output of 3,000 to 5,000 pieces per hour. The efficient automated process significantly boosts productivity compared to manual stripping, making it ideal for batch processing and meeting demanding production schedules.

What are the key benefits of using this industrial wire processor?

The WPM-ES delivers high-precision cutting and stripping, ensuring clean, undamaged conductors every time. Key benefits include dramatically increased production speed, reduced labor costs, consistent quality, and the flexibility to handle various wire types and sizes with minimal adjustment.

What are the power requirements and main applications for this machine?

The machine operates on a standard 110V or 220V power supply, offering flexibility for different workshop setups. It is an essential industrial cable cutting machine for applications in electronics manufacturing, automotive wiring harness production, appliance assembly, and any operation requiring reliable, high-volume wire termination.
