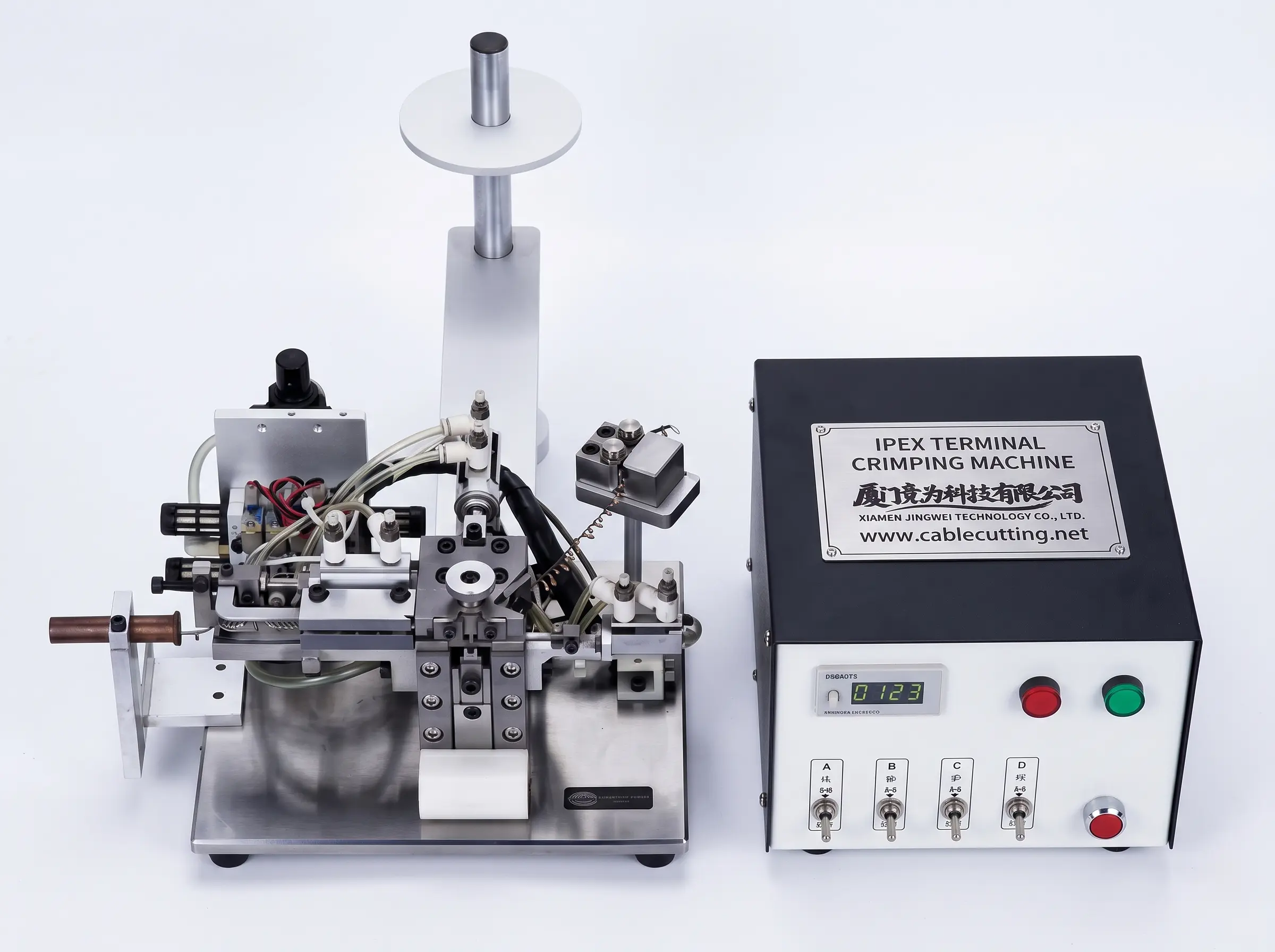

What types of coaxial cable diameters does the WPM-IPEX IPEX coaxial cable crimping machine support?
The WPM-IPEX IPEX coaxial cable terminal crimping machine supports a range of cable outer diameters including 0.81mm, 1.13mm, 1.32mm, 1.37mm, and 1.78mm. This versatility allows it to handle various RG6 connectors and other precision connector terminals, making it suitable for diverse cable harness manufacturing applications.
How does the WPM-IPEX machine ensure high precision and reliability in crimping RG6 connectors?
The WPM-IPEX achieves high precision through its use of Japan SMC pneumatic components, which provide reliable and sturdy operation. The machine integrates cutting, molding, and crimping in one process, with PLC control for simple manual or automatic operation. This ensures consistent, tight connections for IPEX series terminals and other associated connectors.
What is the production efficiency of the IPEX coaxial cable terminal crimper, and how does it benefit cable harness manufacturing?
The WPM-IPEX delivers a production efficiency of 2200 pieces per hour, significantly boosting throughput in cable harness manufacturing. This high speed, combined with its compact design and energy-saving modular electrical components, reduces operational costs and increases output, making it ideal for high-volume industrial environments.
What are the power and pressure requirements for operating the WPM-IPEX coaxial cable crimping machine?
The WPM-IPEX operates under a pressure range of 0.5 to 0.7 MPa (5 to 7 bar) and requires AC220-240V, 50-60Hz power with a consumption of 300VA. These specifications ensure stable performance with low energy usage, and the machine's noise level remains below 70 dB(A) for a quieter workplace.
Is the WPM-IPEX machine suitable for crimping connectors other than IPEX series terminals?
Yes, while the WPM-IPEX is specifically designed for I-PEX series precision connector terminal molding and crimping, it is also suitable for molding other associated connector terminals. Its adjustable die and PLC control allow it to accommodate different terminal types, provided they match the supported cable diameters, enhancing its versatility in cable harness production.
