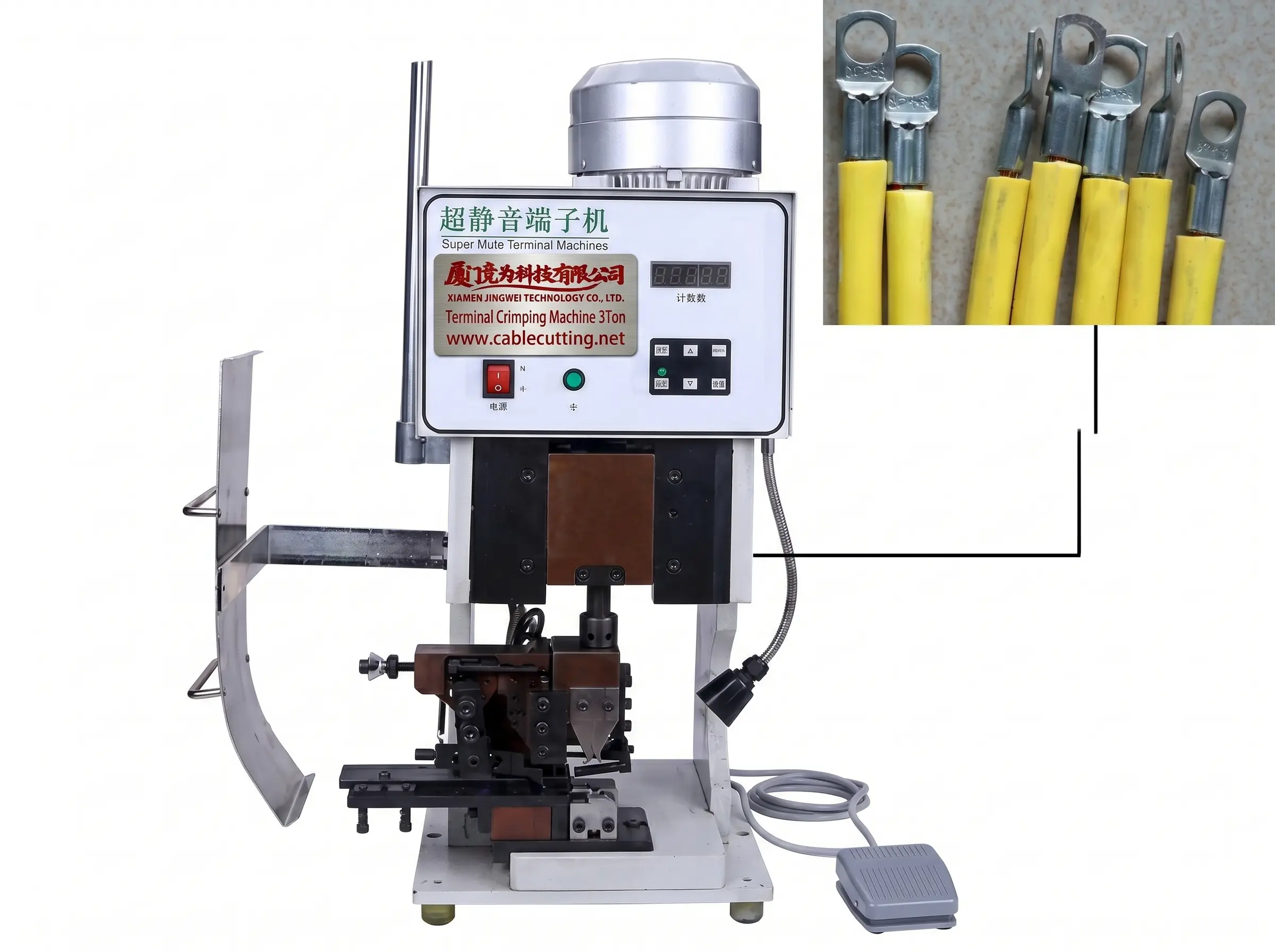

Semi-Automatic Mute Terminal Crimping Machine 3.0TON WPM-3000S

Name: Semi-Automatic Mute Terminal Crimping Machine 3.0TON WPM-...
Brand: JINGWEI
SKU: WPM-3000S
Availability: InStock
Rating: 5 (1 reviews)

The terminal crimping machine is a high-speed semi-automatic device that features rapid mold replacement and stable speed, making it compatible with various molds.

Boost Productivity with Our High-Speed Semi-Automatic Terminal Crimping Machine: Versatility, Speed & Low Noise for Superior Wire Processing

Introduction:

Introducing the WPM-3000S Semi-Automatic terminal crimping machine, a high-performance device engineered to revolutionize your wire termination processes. This advanced Wire Terminal Crimping Machine delivers exceptional speed and efficiency, making it ideal for high-volume production environments. The WPM-3000S terminal crimping machine is designed for rapid mold replacement and stable speed, ensuring compatibility with a wide variety of molds and terminals. Experience simplified operation, easy maintenance, and a significant reduction in downtime, all while achieving superior crimping quality. This Electric Terminal Crimping Machine is built with a focus on high yield and low maintenance, saving you valuable resources and enhancing your production line’s efficiency. Its sleek and elegant design not only performs exceptionally but also elevates the aesthetic of your workspace, projecting a more advanced and professional image for your facility.

Key Features and Benefits:

High-Speed Semi-Automatic Operation for Increased Throughput: This terminal crimping machine offers high-speed semi-automatic operation, significantly boosting your production throughput and reducing cycle times compared to manual crimping methods.
Rapid Mold Replacement for Enhanced Versatility and Reduced Downtime: Designed for quick and easy mold replacement, this machine maximizes versatility and minimizes downtime when switching between different terminal types and applications. Adapt to changing production needs with exceptional speed and efficiency.
Stable Speed and Compatibility with Various Molds for Flexible Production: Benefit from stable and consistent operating speed, ensuring reliable performance across a wide range of molds. This terminal crimping machine is engineered for broad compatibility, allowing you to handle diverse terminal crimping tasks with a single machine.
Built-in Frequency Converter for Low Noise and Smooth Operation: Incorporating a built-in frequency converter, this machine operates at high speed while maintaining remarkably low noise levels. Create a more comfortable and productive working environment for your operators.
Easy Operation and Simple Maintenance for Reduced Running Costs: Designed with simplicity in mind, this Wire Terminal Crimping Machine is easy to operate and requires minimal maintenance. Reduce training time for operators and minimize ongoing maintenance costs, contributing to significant savings.
Supports Both Manual and Automatic Modes for Flexible Control: Offering both manual and automatic operation modes, this Electric Terminal Crimping Machine provides flexible control over the crimping process. Utilize manual mode for setup and adjustments, and switch to automatic mode for high-speed production runs.
LED Display for Clear Monitoring of Crimping Count: An integrated LED display clearly shows the number of terminals crimped, providing valuable production data for monitoring output and efficiency.
Adjustable Speed for Optimized Crimping of Different Materials and Terminals: The machine's speed is easily adjustable, allowing you to optimize the crimping process for different wire and terminal materials. Achieve consistently high-quality crimps across diverse applications by tailoring the speed to specific requirements.
Customizable Crimping Die Design for Specialized Terminal Types: The crimping die can be custom-designed according to your specific terminal requirements, ensuring precise and optimal crimping for even specialized or unique terminal types.
Suitable for a Wide Range of Terminals (Computer, DC/AC, Single, Joint, Electronic Toy, Car/Motorcycle, etc.): This highly versatile machine is suitable for crimping a broad spectrum of terminals, including:
- Computer terminals
- DC terminals
- AC terminals
- Single grain terminals
- Joint terminals
- Electronic toy terminals
- Car/motorcycle terminals
- Horizontal terminals
- Straight terminals
- And more - with customization available for special terminals!

Technical Specifications:

Feature	Specification
Product Type	Semi-Automatic Terminal Crimping Machine
Keyword Focus	terminal crimping machine
Also Known As	Wire Terminal Crimping Machine, Electric Terminal Crimping Machine
Model	WPM-3000S
Operation Type	Semi-Automatic, Low Noise
Special Features	Rapid Mold Replacement, Stable Speed, Versatile Mold Compatibility
Frequency Converter	Built-in
Crimping Force	3.0 TON (3000KG Nominal Pressure)
Stroke	30mm (Customizable 40mm Available)
Power Supply	220V/50Hz, 110V/60Hz
Average Power Consumption	450W
Motor Power	1100W
Display	LED (Crimping Count)
Operation Modes	Manual and Automatic
Weight	65KG (Net Weight, excluding mold)
Dimension	270240650mm
Applicable Terminals	Computer Terminals, DC Terminals, AC Terminals, Single Grain Terminals, Joint Terminals, Electronic Toy Terminals, Car/Motorcycle Terminals, Horizontal Terminals, Straight Terminals, Customizable for Special Terminals
Key Benefits	High Speed, Low Noise, Versatile, Easy Operation, Low Maintenance, Customizable Die, Rapid Mold Change

Applications:

The Semi-Automatic terminal crimping machine WPM-3000S is ideally suited for industries and applications requiring efficient, precise, and versatile terminal crimping in medium to high volume production, including:

Electronics Manufacturing: High-volume crimping of terminals for diverse electronic components, wire harnesses, and cable assemblies.
Automotive Wiring Harness Production: Efficient and reliable crimping of a wide variety of terminals in automotive wiring harness manufacturing.
Appliance Manufacturing: Preparing wires with terminals for internal wiring in a broad range of household appliances and consumer electronics.
Computer and Peripheral Assembly: Crimping terminals for computer cables, connectors, and peripheral devices.
Toy Manufacturing: High-speed crimping of terminals for electronic toys and games.
Any application requiring high-speed, versatile, and low-noise semi-automatic terminal crimping with easy mold changeover and customizable die design.

Conclusion:

Elevate your wire termination process with the WPM-3000S Semi-Automatic terminal crimping machine and experience a significant improvement in efficiency, versatility, and operator comfort. This high-speed, low-noise, and user-friendly machine is designed to streamline your operations, reduce downtime, and deliver consistently superior terminal crimping results across a wide variety of terminal types and applications. Contact us today to learn more and request a personalized quote to revolutionize your wire processing workflow!

4. Supporting customizing for their special terminals!

Mold	WPM-1000S	WPM-1500S	WPM-2000S	WPM-3000S	WPM-4000S	WPM-6000S
Power supply	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ
Pressing force	1000kc	1500kc	2000kc	3000kc	4000kc	6000kc
Motor power	0.35kw	0.55kw	0.75kw	1.0kw	1.5kw	2.2kw
Trip	30mm	30mm	30mm	30mm	30mm	30mm
Size	460210220mm	230210580mm	275225670mm	275245670mm	300265680mm	830360320mm
Weight	25kg	40kg	50kg	60kg	95kg	120kg

What are the key features and benefits of the WPM-3000S Semi-Automatic Mute Terminal Crimping Machine?

The WPM-3000S is engineered for efficiency and operator comfort. Its key features include a powerful 1100W motor delivering 3.0TON of crimping force, a high-speed semi-automatic operation for consistent output, and a rapid mold replacement system that minimizes downtime. The standout benefit is its low-noise 'mute' design, creating a better working environment. This combination makes it ideal for high-volume, precision crimping of computer, DC, and AC terminals in cable harness manufacturing.

What types of terminals is the WPM-3000S crimping machine designed for?

The WPM-3000S is specifically designed to crimp a wide range of insulated and non-insulated wire terminals. It is optimally suited for computer terminals (like JST, Molex types), DC power terminals, and AC line terminals commonly used in appliances and electronics. Its versatile 3.0TON force and adjustable settings allow it to handle various terminal sizes and wire gauges within its capacity, making it a core piece of wire processing equipment for harness assembly.

How does the rapid mold replacement system work, and why is it important?

The rapid mold replacement system allows operators to quickly change the crimping dies (molds) without extensive tools or recalibration. This is crucial for production flexibility, enabling swift switching between different terminal types or wire sizes. The benefit is significantly reduced machine downtime, which increases overall equipment effectiveness (OEE) and allows manufacturers to handle small batch jobs or multiple product lines efficiently on a single machine.

What makes this a 'mute' crimping machine, and what are the advantages?

The 'mute' designation refers to the machine's advanced engineering that drastically reduces operational noise compared to standard crimpers. This is achieved through optimized mechanics and sound-dampening materials. The advantages are substantial: it reduces operator fatigue, improves communication on the shop floor, and contributes to a safer, more compliant industrial environment. This feature is especially valuable in facilities where multiple machines run simultaneously or where noise regulations are strict.

Is the WPM-3000S suitable for both small workshops and large-scale manufacturing?

Yes, the WPM-3000S is designed to scale. Its semi-automatic operation provides the perfect balance of speed and control, making it productive enough for high-volume cable harness manufacturing while remaining accessible and cost-effective for smaller workshops or job shops. The ease of mold changes and reliable 3.0TON performance ensure consistent quality whether running long batches or frequent short runs, offering a strong return on investment for businesses of various sizes.
