Model No: WPM-221 WPM-331 WPM-441 WPM-551 WPM-4331 WPM-5331
Universal automatic silicone / epoxy resin / UV glue dispensing machine,Epoxy Resin Dispensing Machine, Glue Dispensing Automatic, Silicone Dispensing Machine
1. Can replace manual operation with high precision programming of dots, stripes, arcs, and patterns on different planes or curved surfaces.
2. Suitable for positioning of different jobs.
3. It supports graphics importing from computers, PLT files, TCF files, and G code files.
4. Suitable for glue: Anaerobic, Coatings, Cyanoacrylates, White Glues, Epoxy Resin, Greases, Sealants, Silicones, Solder/Braze Pastes, Thermal Grease, Conductive Adhesive, Red Gum, UV Glue, AB Glue, Polyurethane Resin Adhesive, etc.

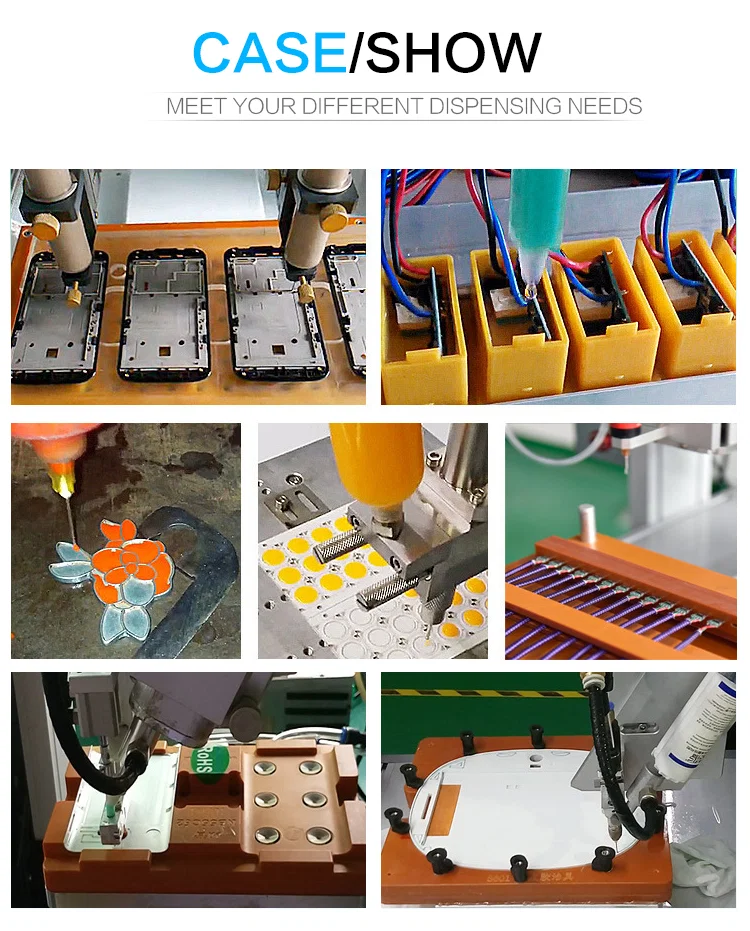

This equipment is suitable for high efficiency, high running precision, and the production process of dispensing. Generally suitable for products with sensors, relays, power adapters, electronic toys, sounders, electronic components, household
appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button products, battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts package coating, quantitative liquid filling, chip bonding, automotive mechanical parts coating, mechanical seals, etc.
Introducing the Universal Automatic Silicone/Epoxy Resin/UV Glue Dispensing Machine: Your All-in-One Adhesive Solution
Elevate your dispensing processes with the Universal Automatic Silicone/Epoxy Resin/UV Glue Dispensing Machine, a revolutionary system designed for unmatched versatility and precision. This advanced automatic glue dispensing equipment consolidates multiple dispensing capabilities into a single, robust platform, streamlining your production and maximizing efficiency. Whether you require precise application of silicone, epoxy resin, or UV glue, this machine provides a comprehensive and automated solution for diverse adhesive needs.
This truly universal automatic silicone/epoxy resin/UV glue dispensing machine eliminates the need for multiple specialized units, offering seamless handling of various adhesive materials. Its intelligent design allows for quick and easy changeovers between different glue types, maximizing production flexibility and minimizing downtime. Experience the convenience of a single machine capable of tackling a wide spectrum of adhesive applications.
Specifically engineered for demanding applications, this epoxy resin dispensing machine excels in accurately and consistently dispensing epoxy resins. Its robust construction and precise control mechanisms ensure optimal mixing and dispensing ratios, resulting in high-quality, reliable epoxy bonds every time. From intricate micro-dispensing to larger volume applications, this machine handles epoxy resins with unparalleled precision and control.

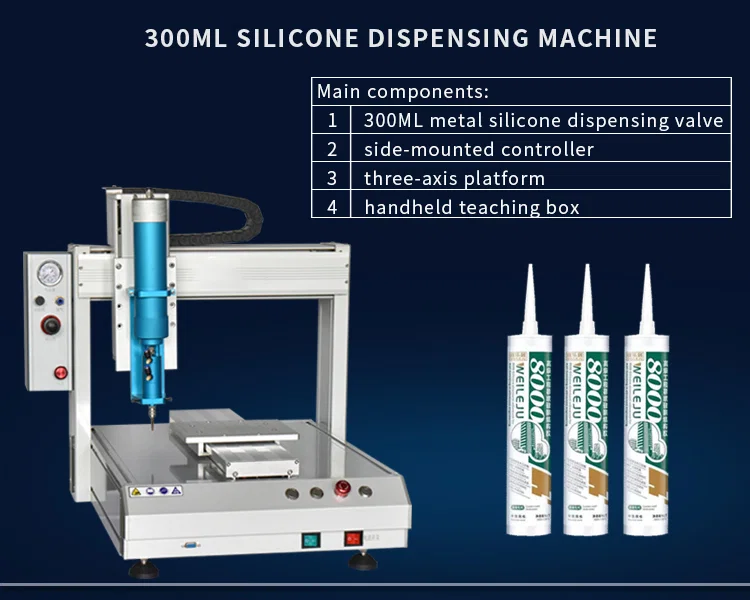

Beyond epoxy, this versatile machine also functions as a sophisticated silicone dispensing apparatus. Silicone dispensing can often be challenging due to material viscosity and flow characteristics, but this apparatus overcomes these hurdles, providing smooth, consistent, and precise silicone application. Whether for sealing, bonding, or gasketing, the silicone dispensing capabilities of this machine meet the most demanding standards.
Furthermore, this system functions as an advanced Epoxy UV Glue Robot, integrating seamlessly with UV curing processes. For UV curable adhesives, the machine ensures accurate and consistent dispensing, optimizing the curing process and maximizing bond strength. As an Epoxy UV Glue Robot, it automates the entire dispensing and UV curing sequence, enhancing production speed and minimizing manual intervention.
As automatic glue dispensing equipment, this machine is designed for ease of use and seamless integration into automated production lines. Its intuitive interface and programmable controls allow for quick setup and precise customization of dispensing parameters. This automation not only increases throughput but also significantly reduces material waste and improves overall product quality by eliminating inconsistencies inherent in manual dispensing.
Invest in the Universal Automatic Silicone/Epoxy Resin/UV Glue Dispensing Machine and transform your adhesive application processes. Experience the benefits of true versatility, precision, and automation, streamlining your production and achieving consistently superior results across all your silicone, epoxy resin, and UV glue dispensing needs.
一、Parameter:
Model
WPM-221
WPM-331
WPM-441
WPM-551
WPM-4331
WPM-5331
Number of controlled axes
Three-axis
Four-axis
Effective travel
X axis
200mm
300mm
400mm
500mm
400mm
500mm
Y1 axis
200mm
300mm
400mm
500mm
300mm
300mm
Y2 axis
300mm
300mm
Z axis
50mm
100mm
100mm
100mm
100mm
100mm
Transmission mode
Double-track timing belt
Power source
Stepper motor
Top speed
500mm/sec
Repeat accuracy
±0.05mm
Maximum load
X/Y/Z 5kg/5kg/2kg
Control System
Hand-held three-axis control system
File storage space
400 sets of processing files, up to 9999 points in a single file.
Power
AC110-250V 50-60HZ 350W
Size
L
475mm
520mm
620mm
720mm
620mm
720mm
W
410mm
585mm
685mm
785mm
585mm
585mm
H
522.5mm
596.5mm
596.5mm
596.5mm
596.5mm
596.5mm
Weight
35kg
44kg
59kg
65kg
63kg
62kg
二、Main accessories：
1
motor
Stepper motor
2
Drive
YAKO (China)
3
Linear Guides
(Taiwan) X / Y axis dual rail, Z-axis single rail
4
Three-axis control system
(China)
5
Power supply
Ming Wei (China)
