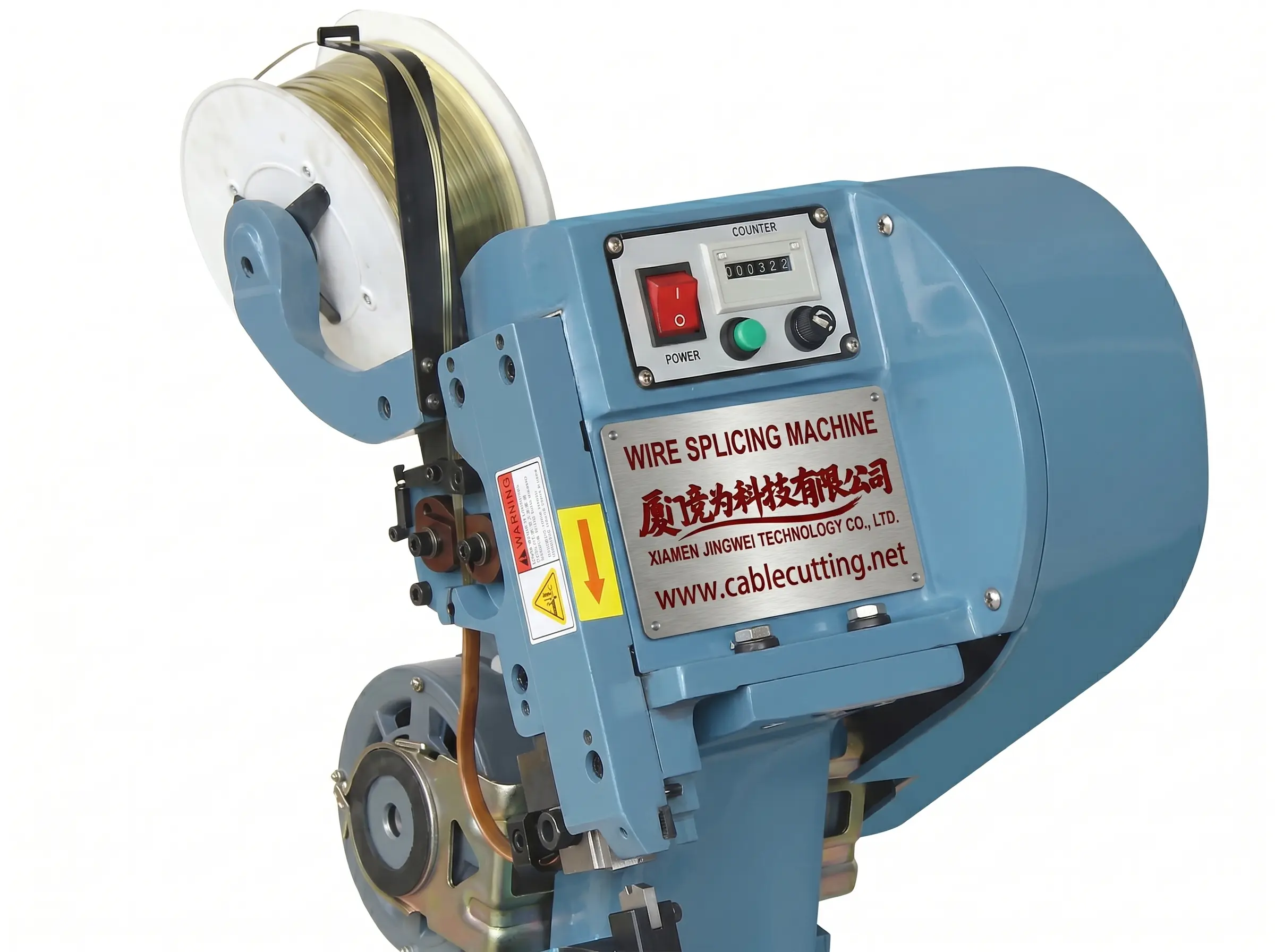

Automatic Copper Strip Wire Splicing Machine WPM-TDJ04

Name: Automatic Copper Strip Wire Splicing Machine WPM-TDJ04
Brand: JINGWEI
SKU: WPM-TDJ04
Availability: InStock
Rating: 5 (1 reviews)

Wire splicing machine, copper strips machine WPM-TDJ04
Available coverage:
A. connecting of wire and neon light
B. connecting the LED resistance
C. connecting of switch and lead
D. connecting the head of the transformers
E. connecting of resistance and the wire
F. connecting the constant-temperature fuse.
This machine is a new type of connecting equipment, that adopts packaging connecting to replace the normal solder connecting or hand riveting, which will be more convenient and dependable, also it doesn’t have the disadvantages of air pollution that cool welding and air welding brings, to pass the UL, JIS security tests.
It is used for successive copper terminals, cutting, forming, and pressing at the same time. High efficiency, low cost, and no waste.
After connecting, the riveting capability of the copper terminal is stable and firm.
It is also equipped with a straight and curl mold set for connecting different products.

Dimension: 340×370×410(MM)
Weight: 55KG
Ram Travel:23MM
Range copper strip width:2MM/4MM/6MM
Nominal pressure:10KN
Production efficiency 200Pcs/MIN
Power: AC220V 50HZ/180W

What is the primary application of the Automatic Copper Strip Wire Splicing Machine WPM-TDJ04?

The WPM-TDJ04 is an industrial-grade automatic wire splicer designed for high-efficiency copper strip splicing in cable harness manufacturing. It is ideal for connecting copper strips in wiring harnesses, terminal blocks, and packaging connections, effectively replacing traditional soldering methods to create clean, reliable, and pollution-free splices.

What certifications does this wire splicing machine hold, and why is that important?

This machine is UL and JIS certified. These certifications are crucial for industrial buyers as they guarantee the machine meets stringent international safety and performance standards. This ensures the spliced connections are reliable for use in products destined for global markets, particularly in automotive, appliance, and electronics industries where compliance is mandatory.

How does the efficiency of 200pcs/min benefit my wire processing operation?

With a high-speed output of up to 200 pieces per minute, the WPM-TDJ04 dramatically increases production throughput compared to manual soldering or slower machines. This efficiency reduces labor costs, minimizes production bottlenecks, and allows for faster order fulfillment, providing a significant return on investment for high-volume cable harness and wire processing facilities.

How does this machine achieve a 'no pollution' splice compared to soldering?

The WPM-TDJ04 creates splices through a precise mechanical pressing/crimping action, eliminating the need for solder, flux, or heat. This process produces no fumes, residue, or thermal damage to the wire insulation. The result is a cleaner, more environmentally friendly workplace, consistent joint quality without cold solder joints, and a final product that is more reliable and durable.

What are the key advantages of using this automatic wire splicer over manual connection methods?

The key advantages include unmatched consistency and precision for every splice, eliminating human error. It offers superior speed (200pcs/min), reduces operational costs by saving on labor and solder materials, and improves workplace safety by removing burn hazards and toxic fumes. Ultimately, it enhances product quality and reliability for your cable harnesses while boosting overall production efficiency.
