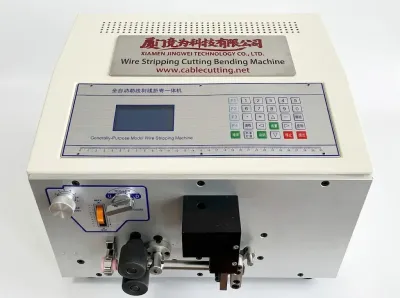

Automatic Wire Stripping Bending Cutting Machine WPM-09SB

Name: Automatic Wire Stripping Bending Cutting Machine WPM-09SB
Brand: JINGWEI
SKU: WPM-09SB
Availability: InStock
Rating: 5 (1 reviews)

Jacket Wire Cutting Stripping Bending Machine, Single Core Cable Bending Machine, Bending Wire Machine Cutting Machine

Automatic Wire Stripping Bending Cutting Machine WPM-09SB

Automatic Wire Stripping Bending Cutting Machine
It can strip bend cut full automatically
An inexperienced user can operate it easily. Support full strip, half strip, and semi-strip. Installed 100 processing programs, no need to reset the program while changing product. Automatic out/inlet line, timing start, unique wire stripping stacking. A wire can be bent in positive and opposite directions at the same time.
.
Available Wire:
1.) Wire Jumper of electric control cabinet
2.) Reversible Wire Jumper of contactor
3.) Curved Wire of Ammeter
One-year warranty, lifetime maintenance
Specification of automatic 16mm2 wire stripping bending cutting machine

Processable Wire Size: AWG5 / 25mm2 max
Conduct Diameter:0.1-25mm2
Cutting Tolerance: 0.002×L mm (L: Cutting Length)
Strip Length: Wirehead 0.1-100mm
Cutting Length: 0.1mm-99999.9mm
Total Quantity:999999
Batch Quantity:99999
Stripping Speed:400-1000pcs per hour
Cutting Speed:0-9 adjustable
Blade Material: Hard Tungsten Steel
Drive Mode: Two Wheels Drives
Bending time: 13times
Bending Length: Last bending length of more than 55mm
Bending Method: Clockwise, Counter-clockwise, bending degree is adjustable, 30/45/60/90 degree, a wire can be bent in the positive and opposite direction at the same time.
Description of automatic Wire Stripper and bender for 16mm2 wire
Overall Size: 420mm x 345mm x 297mm
Machine Net Weight: 31KG
Power Consumption: 130W-200W
Power Supply: AC 175-235V/50/60Hz (other voltage required please tell us in advance)
Package: Standard Export Wooden Case

What are the main functions of the WPM-09SB Automatic Wire Stripping Bending Cutting Machine?

The WPM-09SB is a fully automatic, multi-functional machine designed for industrial wire processing. Its primary functions include precision stripping of insulation from both ends of a wire, cutting wires to specified lengths, and forming consistent bends or 'jumpers' at one or both ends. This integration streamlines cable harness manufacturing by performing three critical operations in one automated cycle.

What wire specifications can the WPM-09SB machine handle?

The WPM-09SB is engineered to process single-core wires up to AWG 5, which corresponds to a cross-sectional area of 25mm². This capacity makes it suitable for a wide range of industrial applications requiring robust wiring, such as in control panels, automotive harnesses, and appliance manufacturing.

How fast is the WPM-09SB, and what is its production output?

This machine offers high-efficiency production with a speed of 400 to 1,000 pieces per hour. The exact output depends on the specific program (wire length, number of bends, and strip length). Its fully automatic operation ensures this consistent, high-speed output with minimal operator intervention, significantly boosting productivity.

Is the WPM-09SB difficult to set up and operate for different wire configurations?

No, the WPM-09SB is designed for easy operation and quick changeovers. It features 100 pre-set program memories, allowing operators to save and instantly recall settings for different jobs. This user-friendly system minimizes setup time, reduces errors, and makes the machine ideal for both high-volume runs and smaller batches with varying specifications.

What are the key benefits of using this machine for cable harness production?

The WPM-09SB provides several key benefits: It dramatically increases productivity by automating stripping, bending, and cutting. It ensures high, repeatable precision and consistency in every processed wire, improving overall harness quality. By consolidating three machines into one, it saves valuable factory floor space. Finally, its ease of use and programmability reduce labor costs and training time, offering a strong return on investment for manufacturers.
